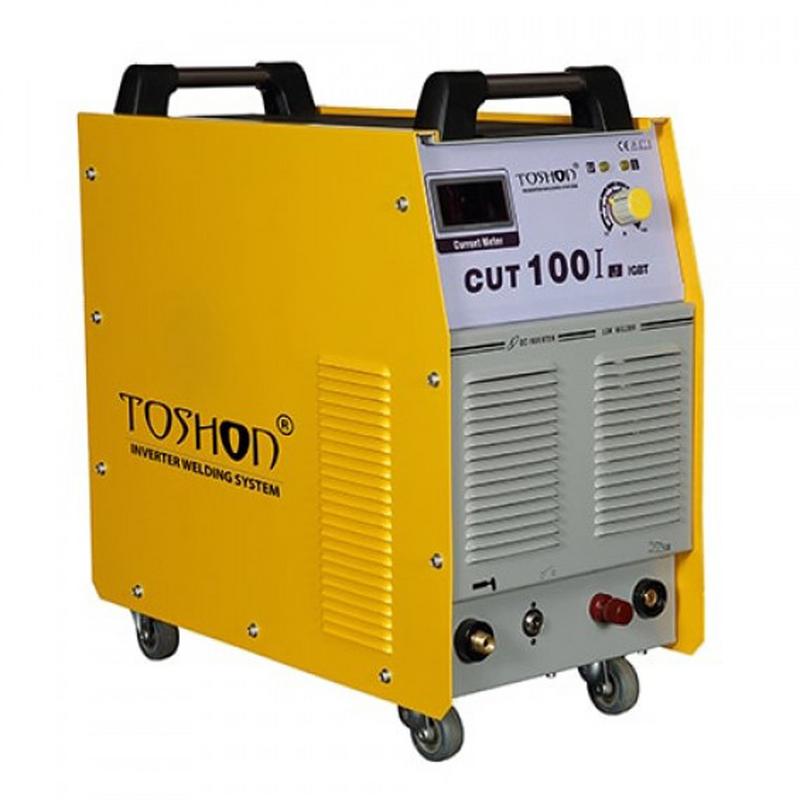

TOSHON CUT 100 I-IGBT



Rs. 80,240.00 Rs. 96,288.00

TOSHON

WELDING MACHINE

4 In Stock


TOSHON CUT 100 I–IGBT

Features:

  • Optimized Layout Structure Design with High Inverter Frequency & High Duty Cycle; Substantial Energy Consumption Savings
  • Smaller, Lighter and Easy to Carry on; Especially Adaptable to the Welding Application in the Field Operation
  • It is featured with high-ignition rate, high arc voltage, energy concentration, strong cutting ability, quick cutting speed, slim cutting line with smooth cut surface and tiny deviation in shape; stable voltage in big cutting current; especially adaptable in cutting the thickness plate, its cutting speed is much quick
  • Capable of cutting the metal in any direction and shape
  • Digital Display,; Cutting Current can be continuously adjusted with clear and accurate reading
  • Built-in over-heat, over-current, over-voltage and less-voltage protection circuits, safe in operation
  • Adaptable to the welding application on the metal of carbon steels, stainless steels, alloy steels, aluminium, copper and so on.

Specification:

Parameter: CUT 100 I - IGBT
Parameter model Cut 100 I 1P
Input Voltage (V) AC415V±10%
Frequency (HZ) 50/60
Rated Input Current (A) 23.1
No-load Voltage (V) 290
Output Current Range (A) 20-100
Rated Output Voltage (V) 120
Duty Cycle (%) 60
Input Power Capacity (KVA) 15.1
Arc Ignition Transfer
Efficiency (%) 80
Power Factor 0.93
Insulation Grade F
Housing Protection Grade IP21
Air Pressure (KG) 4-5
Cutting Thickness (mm) 1-25
Net Weight (kg) 9
Dimension (inch) 22*14.5*14
