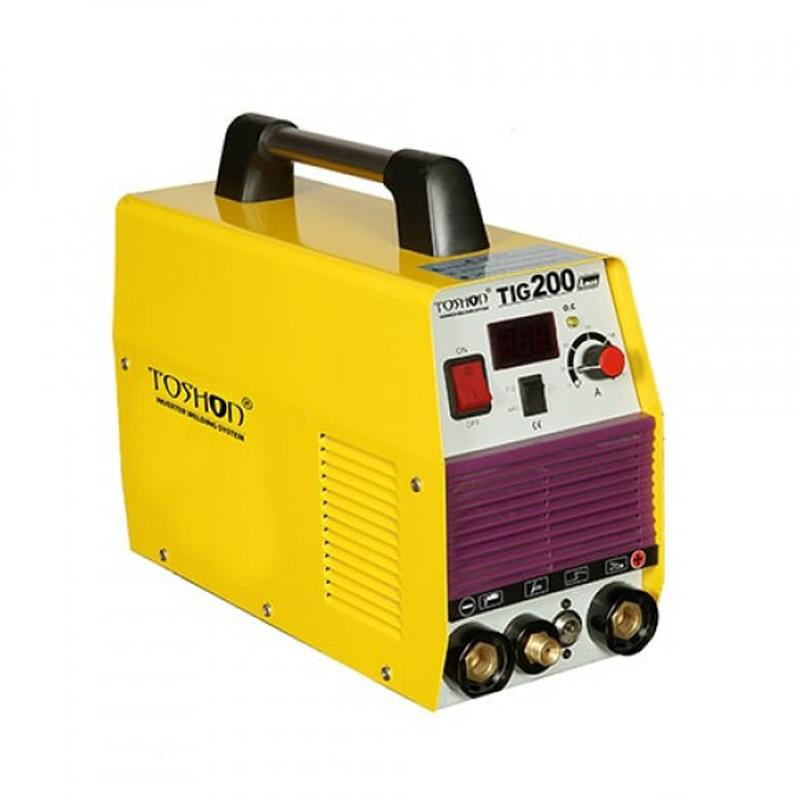

TOSHON TIG 200 AMPS MOSFET



Rs. 13,570.00 Rs. 18,998.00

TOSHON

WELDING MACHINE

98 In Stock


TOSHON TIG 200 AMPS MOSFET

Features:

  • Designed in the advanced inverter technology with high working frequency; small, light and very convenient to carry on.
  • High-Frequency Increased-Voltage & Pulse Hot Arc Ignition Design; Excellent Ignition Performance With Sufficient Welding Current.
  • Over Voltage & Over Current Auto-Protection Functions.
  • Wide range of welding voltage, strong adaptability as to the power supply with high duty cycle, especially adaptable to a continuous working operation.
  • Well organized structure, built through excellent manufacturing processes, reliable, durable and easy to maintain.
  • Adaptable to the welding application on the stainless steels, carbon steels and coppers etc.

Specification:

Input Voltage (V)   AC230V±15%
Frequency (HZ)   50/60
Rated Input Current (A) MMA/TIG   43/28
No-load Voltage (V)   56
Output Current Range (A)   7-200
Input Power Capacity (KVA) MMA/TIG   6/6
Arc Force (A)   --
Duty Cycle (%)   60
No-Load Loss (W)   40
Arc Ignition   HF
Efficiency (%)   80
Power Factor   0.73
Insulation Grade   F
Housing Protection Grade   IP21
Net Weight (kg)   9
Dimension (inch)   15.5*6*12
