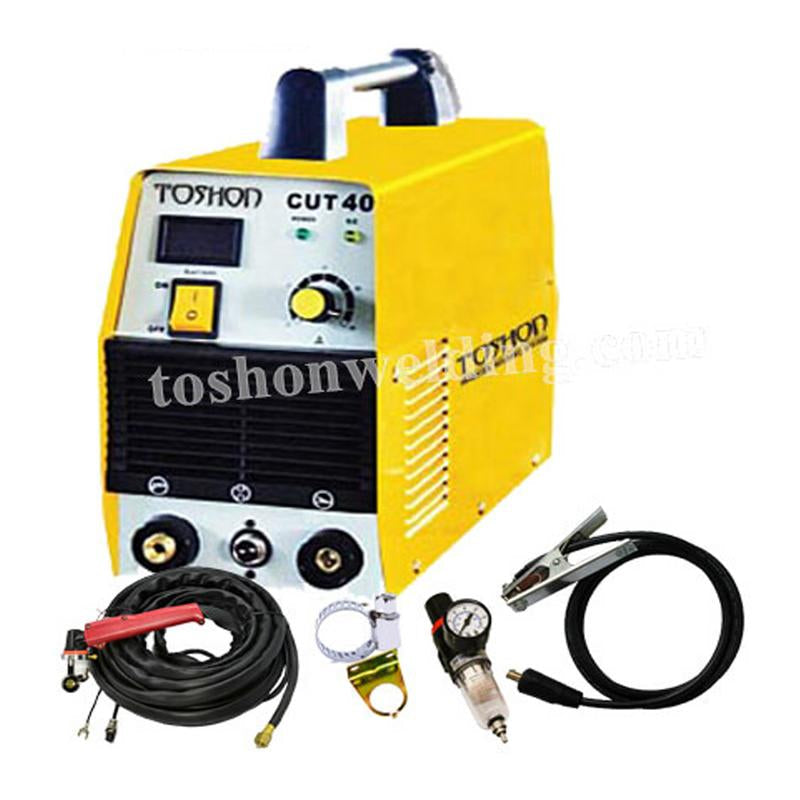

TOSHON CUT 40 MOSFET 1PHASE



Rs. 18,290.00 Rs. 21,948.00

TOSHON

WELDING MACHINE

10 In Stock


TOSHON CUT 40 MOSFET 1PHASE

Features:

  • Optimized Layout Structure Design with High Inverter Frequency & High Duty Cycle; Substantial Energy Consumption Savings
  • Smaller, Lighter and Easy to Carry on; Especially Adaptable to the Welding Application in the Field Operation
  • It is featured with high-ignition rate, high arc voltage, energy concentration, strong cutting ability, quick cutting speed, slim cutting line with smooth cut surface and tiny deviation in shape; stable voltage in big cutting current; especially adaptable in cutting the thickness plate, its cutting speed is much quick
  • Capable of cutting the metal in any direction and shape
  • Digital Display,; Cutting Current can be continuously adjusted with clear and accurate reading
  • Built-in over-heat, over-current, over-voltage and less-voltage protection circuits, safe in operation
  • Adaptable to the welding application on the metal of carbon steels, stainless steels, alloy steels, aluminium, copper and so on.

Specification:

Parameter: CUT 40 MOSFET 1 PHASE
Parameter model Cut 40 1P
Input Voltage (V) AC230V±10%
Frequency (HZ) 50/60
Rated Input Current (A) 30
No-load Voltage (V) 253
Output Current Range (A) 15-40
Rated Output Voltage (V) 96
Duty Cycle (%) 60
Input Power Capacity (KVA) 6.6
Arc Ignition Contact
Efficiency (%) 80
Power Factor 0.73
Insulation Grade F
Housing Protection Grade IP21
Air Pressure (KG) 4-5
Cutting Thickness (mm) 0.3-5
Net Weight (kg) 9
Dimension (inch) 15.5*6*12
