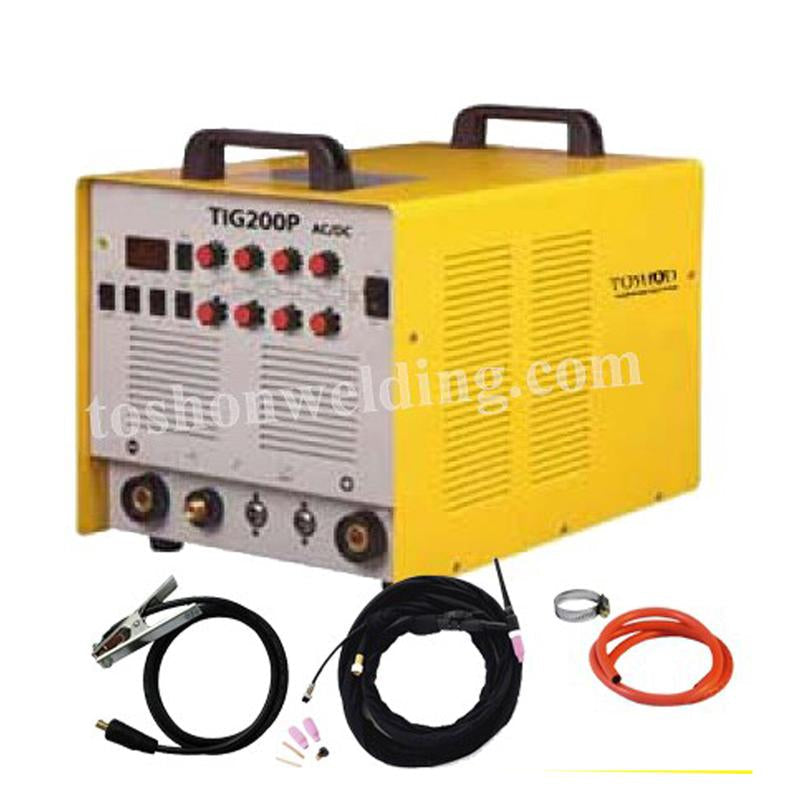

TOSHON TIG/ARC 200P AC/DC 1PHASE MOSFET,



Rs. 35,990.00 Rs. 50,386.00

TOSHON

WELDING MACHINE

98 In Stock


TOSHON TIG/ARC 200P AC/DC 1PHASE MOSFET

Features:

  • Excellent Square Wave Power Source; Capable of running through the zero current position; Featured with a very stable arc but without high frequency
  • Good Arc Stiffness, Heat-Concentration and Easy to Operate With the Wire Feeding
  • Strong capability to clean up the oxide on the surface, the width of cleaning pulse can be continuous adjusted, capable of generating a bright, smooth and nice seam
  • Equipped with the output connection for the foot control pedal, convenient for the welding operation
  • Built-in the protection circuits of over-current, over-heat, over-voltage, less-voltages and even alarming function as well, very safe and reliable.

Specification:

Input Voltage (V)                   AC230V±15%
Frequency (HZ)                    50/60
Rated Input Current (A)        32.5
Output Current Range (A)    5-200
No-load Voltage (V)              44
Input Power Capacity           (KVA)    6
Duty Cycle (%)                     80
No-Load Loss (W)                40
Arc Ignition                           HF
Efficiency (%)                       80
Power Factor                       0.73
Insulation Grade                  F
Housing Protection Grade   IP21
Net Weight (kg)                   33.5
Dimension (inch)                 19*13.5*14.5
