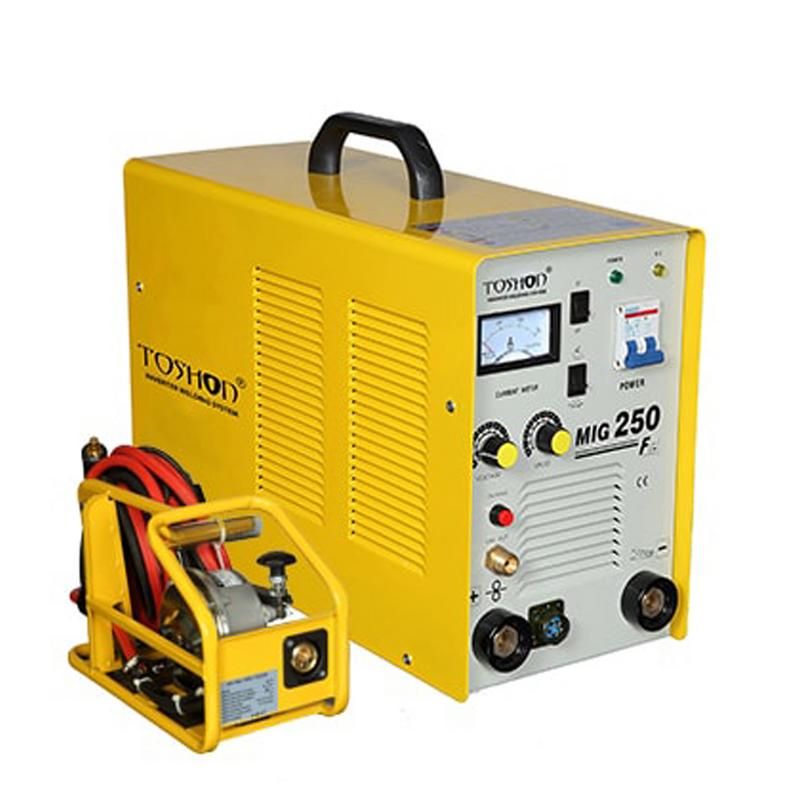

TOSHON MIG 250 AMPS 1PHASE MOSFET



Rs. 34,810.00 Rs. 48,734.00

TOSHON

WELDING MACHINE

100 In Stock


TOSHON MIG 250 AMPS 1PHASE MOSFET

Features:

  • High efficiency and energy savings; its power usage efficiency is up to 80 — 85%, its power factor is up to 0.93; and the energy consumption saving is up to 1/3 in total by comparison to the transformer welder.
  • Digital display, current & voltage preset function
  • Continuous adjustment function of the welding current & voltage with a sufficient wide adjustment range
  • Capable of forming a good seam shape in the opposite side while making a backing weld
  • Adapted an instant wire feeding circuit design, much more stable in wire feeding, capable of achieving highly stable wire feeding.

Specification:

Parameter: MIG 250 AMPS 1 PHASE MOSFET
Input Voltage (V) AC415V±15%
Frequency (HZ) 50/60
Rated Input Current (A) MMA/TIG 8.5
Output Input Range (A) 50-250
Output Voltage Adjustment (V) 26.5
Wire-feeding Speed (m/min) 2.5-18
Duty Cycle (%) 60
Type of Wire Feeder Split
Efficiency (%) 85
Power Factor 0.73
Insulation Grade F
Housing Protection Grade IP21
Net Weight (kg) 9
External Dimension (inch) 14.5*6*9
