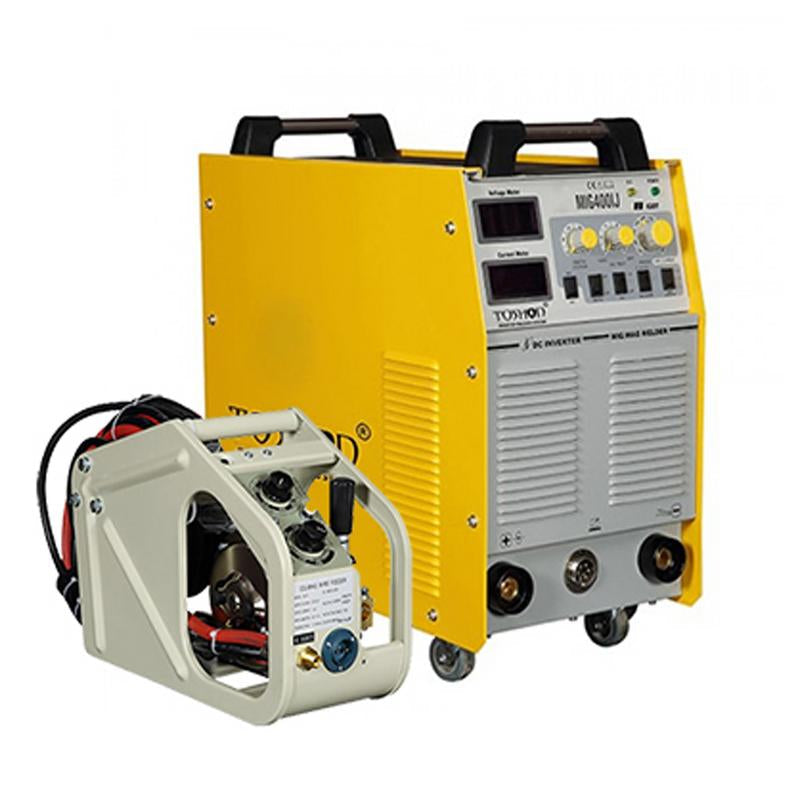

TOSHON MIG MAG/ARC 400AMPS 1 MOULDER IGBT



Rs. 66,670.00 Rs. 93,338.00

TOSHON

WELDING MACHINE

100 In Stock


TOSHON MIG MAG/ARC 400AMPS 1 MOULDER IGBT

Features:

  • High efficiency and energy savings; its power usage efficiency is up to 80 — 85%, its power factor is up to 0.93; and the energy consumption saving is up to 1/3 in total by comparison to the transformer welder
  • Digital display, current & voltage preset function
  • Continuous adjustment function of the welding current & voltage with a sufficient wide adjustment range
  • Capable of forming a good seam shape in the opposite side while making a backing weld
  • Adapted an instant wire feeding circuit design, much more stable in wire feeding, capable of achieving highly stable wire feeding.

Specification:

Parameter: MIG - MAG / ARC 400 AMPS I Moulder IGBT
Parameter Model MIG-400I-3P IGBT
Input Voltage (V) AC415V±15%
Frequency (HZ) 50/60
Rated Input Current (A) MMA/TIG 14
Output Input Range (A) 50-400
Output Voltage Adjustment (V) 31.5
Wire-feeding Speed (m/min) 3.0-24
Duty Cycle (%) 60
Type of Wire Feeder Split
Efficiency (%) 85
Power Factor 0.93
Insulation Grade F
Housing Protection Grade IP21
Net Weight (kg) 36
External Dimension (inch) 21.5*11*
