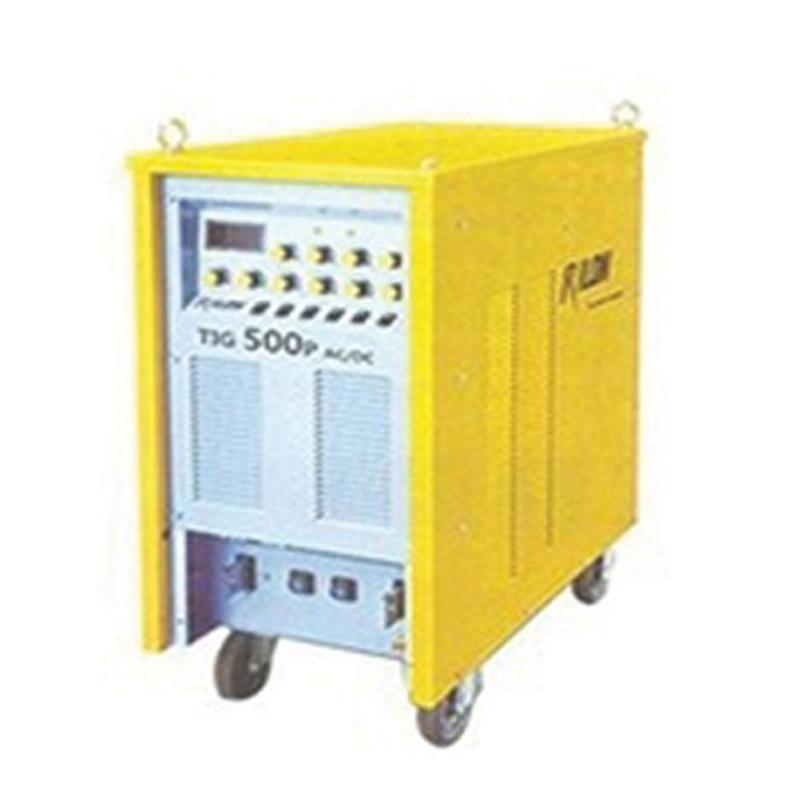

RILON AC/DC 500P IGBT AC/DC INVERTER BASED WELDING MACHINE
RILON
WELDING MACHINE
100 In Stock
RILON AC/DC 500P IGBT AC/DC INVERTER BASED WELDING MACHINE
Features:
- Multifunctional pulse tig, ac/dc and mma function
- with 2T/4T and repeat function
- Up slope and down slope function adjustable
- post flow 0-10s adjustable
- Pulse frequency and pulse width adjustable
- Start current, base current, peak current and crater current adjustable
- With remote control function
- Wide raange for input voltage: 380V ± 15%
- Adopt advanced module IGBT technology.
Specification:
| Parameters | Specification |
|---|---|
| Input Voltage | AC380V+-15%1P |
| Input Frequency | 50/60 |
| Related Input Current | TIG:29A MMA:22A |
| Input Power | TIG:18.9KVA MMA:14.5KVA |
| Open circuit Voltage | 70V |
| Current Range | 30-500 |
| Duty Cycle | 60% |
| Arc-Initiating (TIG) | H-F |
| Efficiency | 85% |
| Power Factor | 0.93 |
| Protection Class | IP21 |
| weight | 85 KG |
| Dimensions | 760X380X820 mm |
