RILON MIG/ ARC 630I MODULER
RILON
WELDING MACHINE
100 In Stock

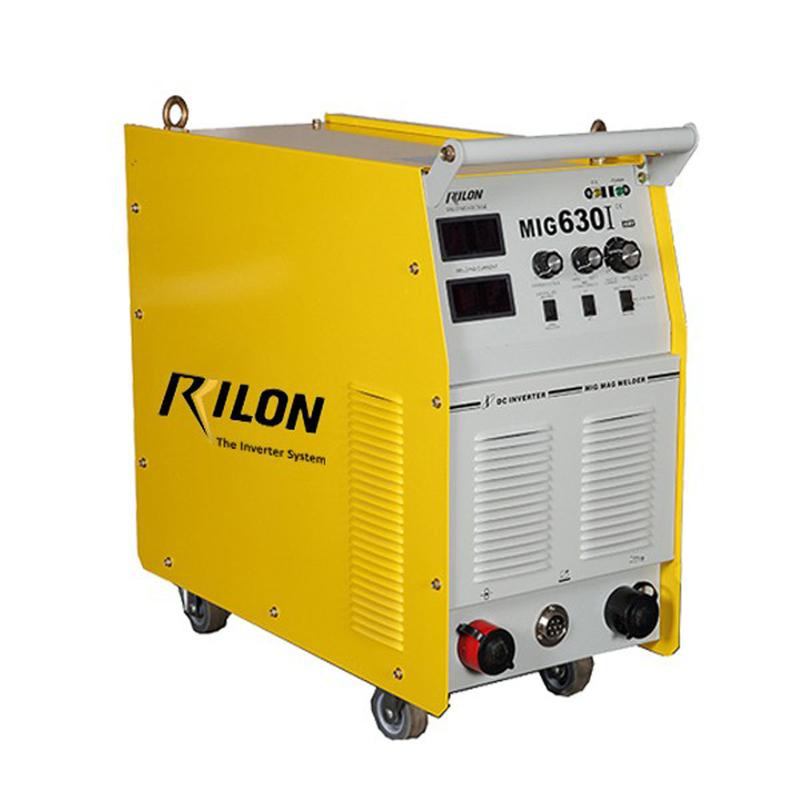

RILON MIG/ ARC 630I MODULER
MIG 630I Moduler - ARC is one of the machine of MIG series
Features:
- Multi functional MIG/MAG, ARC
- Soft-arc and strong-arc, adjustable.
- Arc-stability with low spatter.
- Pre-set digital display
- Wide range for input voltage:380V +- 15%
- Advanced IGBT module technology.
Specification:
| Parameters | Specification |
|---|---|
| Input Voltage | AC380V +- 15% 3P |
| Input Frequency | 50/60 |
| Related Input Current | MIG 55A ARC 54.8A |
| Open Circut Voltage | 72V |
| Related Input Power | MIG 36.2 KVA ARC 36KVA |
| Current Range | MIG 100-630A, ARC 63-630A |
| Duty Cycle | 60% |
| Power Factor | 0.93 |
| Efficiency | 85% |
| Wire-Feeding Speed | 3-15m/min |
| Wire Feeding Mechanism | External |
| Protection Class | IP21 |
| Wire Diameter | 0.8-1.6 mm |
| Weight | 45KG |
| Dimentions | 670X320X640 mm |
