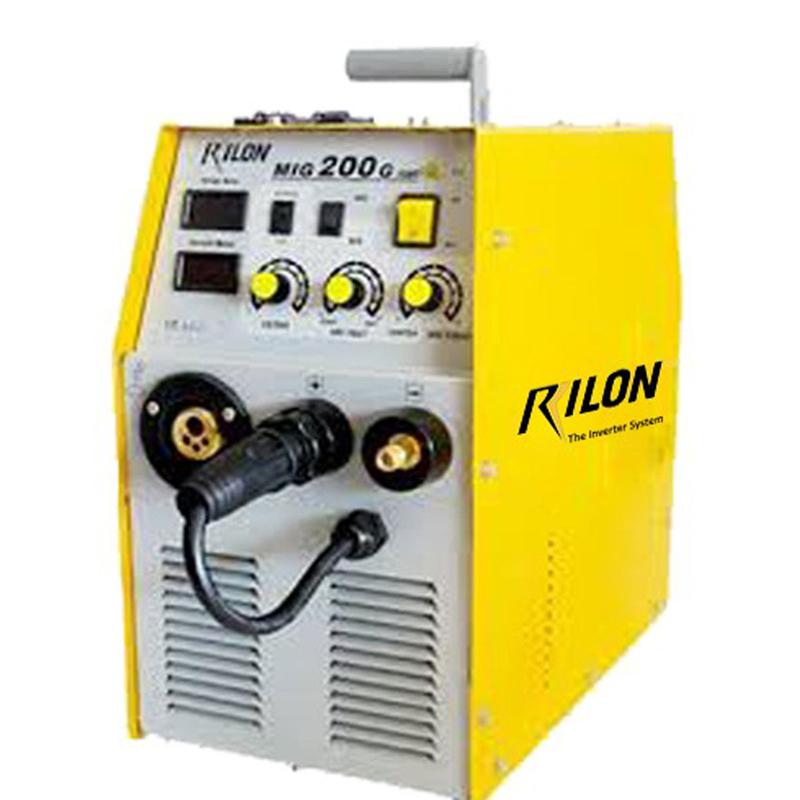

RILON MIG/ARC 200 SINGLE PHASE
RILON
WELDING MACHINE
100 In Stock
RILON MIG/ARC 200 SINGLE PHASE
MIG 200 Single Phase ARC is one of the machine of MIG series.
Features:
- Multi functional MIG, ARC
- Sot-arc and strong arc adjustable
- Arc stability with low spatter
- Pre-set digital display
- Wide range for input voltage:220V +- 15%
- With advanced single IGBT technology
- Super compant & portable.
Specification:
| parameters | Specification |
|---|---|
| Input Voltage | AC220V +- 15% 1P |
| Input Frequency | 50/60 |
| Related Input Current | MIG 37.4A, ARC 33.2A |
| Open Circut Voltage | 60V |
| Related Input Power | MIG 8.2KVA, ARC 7.3KVA |
| Current Range | MIG 40-200A, MMa 30-160A |
| Duty Cycle | 60% |
| Power Factor | 0.73 |
| Efficiency | 80% |
| Wire-Feeding Speed | 3-13/min |
| Wire Feeding Mechanism | Internal |
| Protection Class | IP21 |
| Wire Diameter | 0.6-1.0mm |
| Weight | 21KG |
| Dimentions | 467X243X447 mm |
