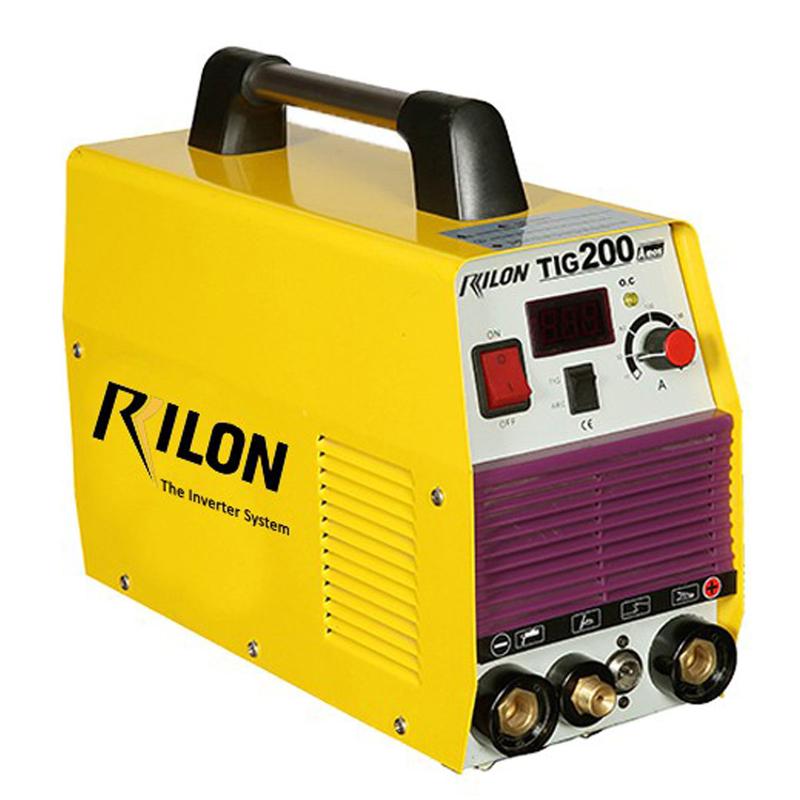

RILON TIG 200 MOSFET



Rs. 14,750.00 Rs. 20,650.00

RILON

WELDING MACHINE

100 In Stock


RILON TIG 200 MOSFET

Portable. Professional. Rugged. Affordable.

Features:

  • Advanced inverter technology delivers superior TIG performance. With HF TIG arc starting, allows you to strike the arc easily with high frequency,and makes it easy to establish an arc under a variety of conditions.
  • Easy setting approach between TIG with HF striking.
  • Automatic Hot Start boosts the current during starting to make striking an arc easier.
  • Ideal for small and medium steel fabrications ( steel and stainless steel, copper, titanium, etc.).
  • Auto-Protection against over-voltage,over-current and over-heated. Energy Saving - Compared with the traditional TIG machine more efficient.
  • Smaller, lighter and portable, this equipment is protected by a matal (solid plastic optional) casing.

Specification:

Parameters Specification
Rated Input Voltage(V) AC220V±15% 1P
Arc-Initiating(TIG) H-F
Rated Input Current(A) TIG:28.2 MMA:32.6
Efficiency(%) 80
Input Frequency (HZ) 50/60
Power Factor 0.73
Rated Input Power(KVA) TIG:6.2
MMA:7.1 Protection Grade IP21
Open Circuit Voltage(V) 56
Weight(kg) 9
Current Range(A) 10-200
Dimension(mm) 395*153*301
Duty cycle at maximum current 60%@25
