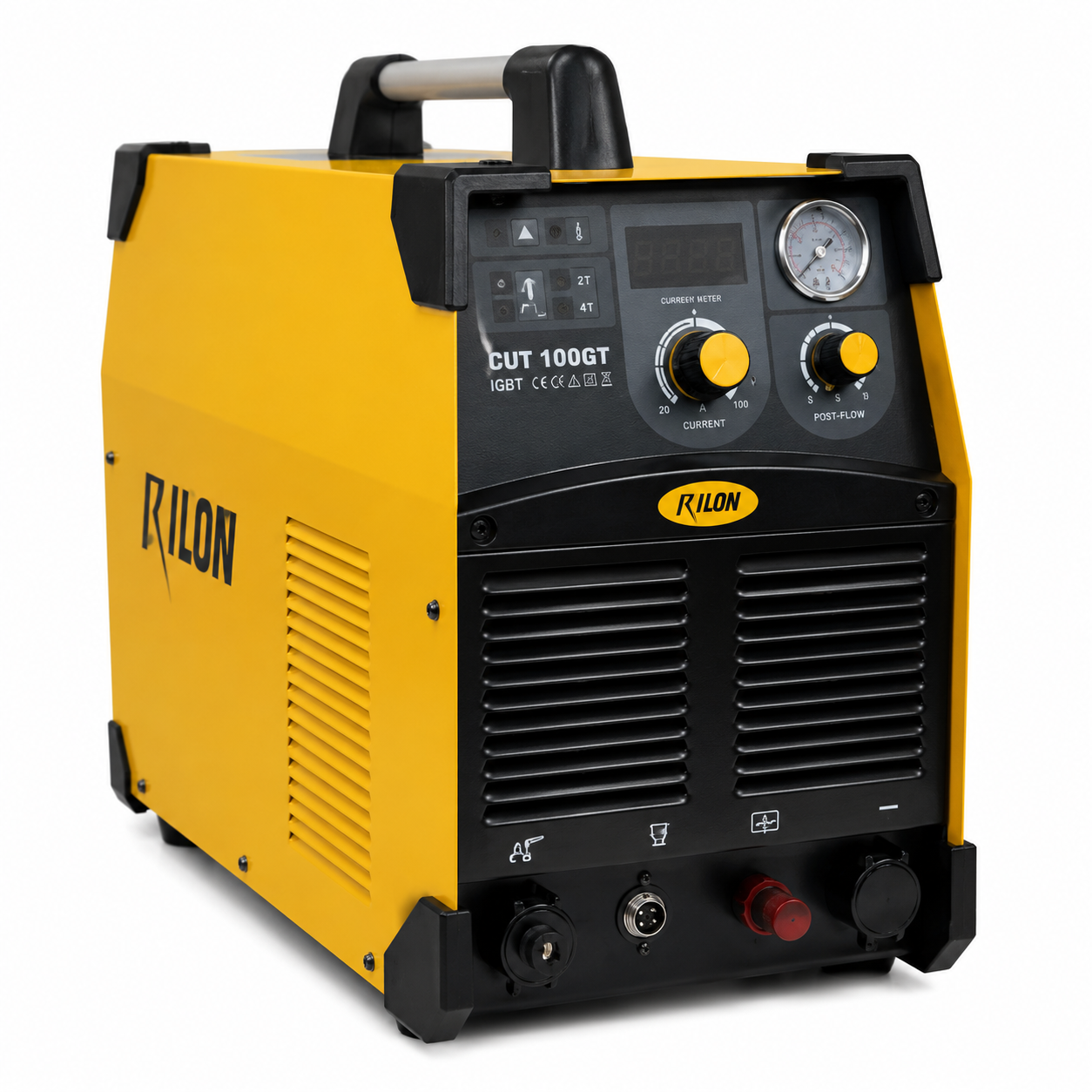

RILON CUT 100IJ PLASMA CUTTING MACHINE
RILON
WELDING MACHINE
8 In Stock
RILON CUT 100IJ PLASMA CUTTING MACHINE
Features:
- Smooth arc striking with HF control
- Quality narrow cutting and excellent travel speed
- Cutting accessories with competitive price and performance
- Recommended thickness: 30mm (carbon steel)
- Wide range for input voltage : 380V +- 15%
- Energy saving
Specification:
| Parameters | Specification |
|---|---|
| Input Voltage | AC380V+-15% 1P |
| Input Frequency | 50/60 |
| Related Input Current | 23.1A |
| Input Power | 15.1KVA |
| Open Circut Voltage | 293V |
| Current Range | 20-100A |
| Related Output Voltage | 120V |
| Duty Cycle | 60% |
| Efficiency | 85% |
| Power Factor | 0.93 |
| Cutting thickness | <= 25mm |
| Arc initiating | Untouch |
| Air pressure (MPa) | 0.4-0.5MPa |
| Protection Class | IP21 |
| Weight | 36.5KG |
| Dimensions | 550X280X545 mm |
