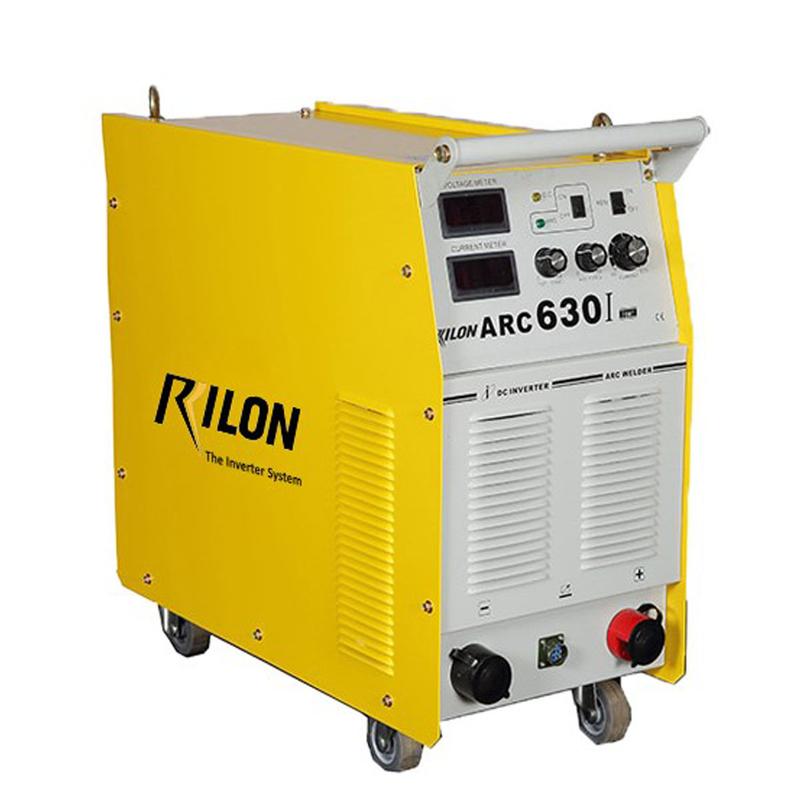

RILON ARC 630 IGBT MODULAR

Description:

Look to the ARC 630I for your heavy-duty stick welding needs. Whether you are using cellulosic, low hydrogen, stainless steel or hardfacing electrodes, they can produce a smooth, quality arc for consistent results day-in and day-out.

Features:

  • Easy to operate – Calibrated current control knob makes procedure setting simple and easy.
  • Advanced IGBT Module technology ,Tri-proof air tube design, high duty cycle, more reliable in bad environment.
  • Digital meter to preset and display welding current.
  • Dust-Free cooling system, Enhance higher Duty Cycle.
  • ARC force and Hot start adjustable, easy to striking the arc.
  • VRD function,it safe for welders.
  • Auto-Protection against over-voltage, over-current and over-heated.
  • Arc gouge with the ARC 630I using up to 1/2 in. (12.7 mm) diameter carbon electrode.
  • Remote control function, enlarge your welding Area.

Specification:

Parameters Specification
Rated Input Voltage(V) AC380V±15% 3P
Efficiency(%) 85
Rated Input Current(A) 53.1
Power Factor 0.93
Input Frequency(HZ) 50/60
Protection Grade IP21
Rated Input Power(KVA) 36
Weight(kg) 54
Current Range(A) 50-630
Electrode Diameter(mm) 2.0-6.0
Open Circuit Voltage(V) 85
Dimension(mm) 670*320*640
Duty cycle at maximum current 60%@40
