RILON TIG 300 MOSFET



Rs. 23,010.00 Rs. 32,214.00

RILON

WELDING MACHINE

99 In Stock

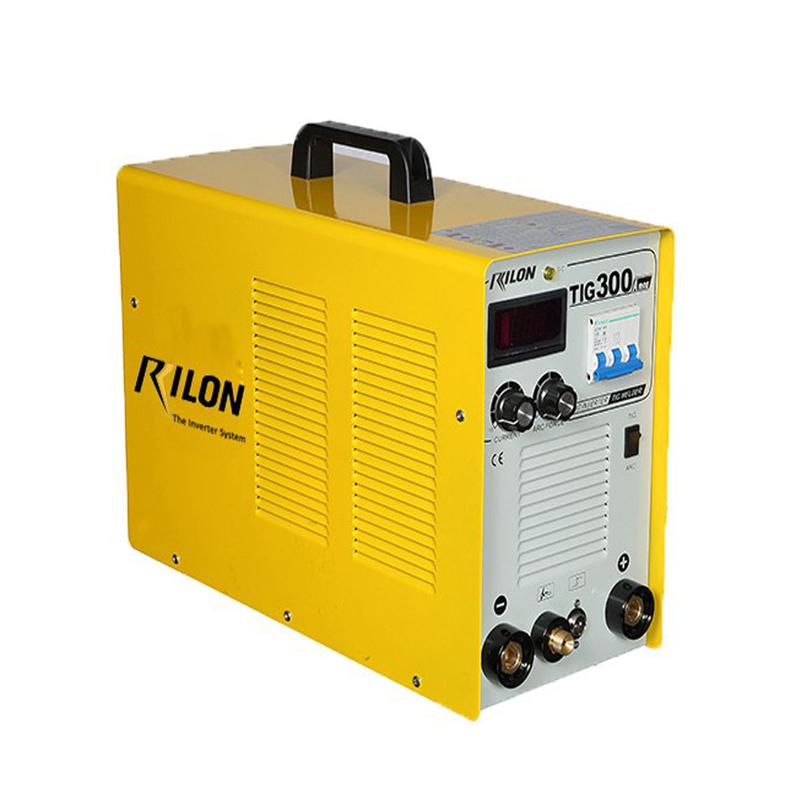

RILON TIG 300 MOSFET

Excellent,Precision,Industrial AC/DC Multi-Process Welders

Features:

  • Dual welding process: TIG DC / MMA (Stick).
  • Arc stability and control.
  • With HF arc starting.
  • Possibility of choosing between welding cycle 2T or 4T.
  • Slope down time adjustable.
  • Post-gas time adjustable.
  • Automatic Hot Start boosts the current during starting to make striking an arc easier.
  • Digital instrument for the welding current.
  • Auto-Protection against over-voltage,over-current and over-heated.
  • Smaller, lighter and portable, this equipment is protected by a solid metal casing.

Specification:

Parameters Specification
Rated Input Voltage(V) AC220V±15% 1P
Arc-Initiating(TIG) H-F
Rated Input Current(A) TIG:41 MMA:58
Efficiency(%) 85
Input Frequency (HZ) 50/60
Power Factor 0.73
Rated Input Power(KVA) TIG:8.4 MMA:12
Protection Grade IP21
Open Circuit Voltage(V) 56
Weight(kg) 19
Current Range(A) 10-300
Dimension(mm) 505*203*375
Duty cycle at maximum current 60%@25
