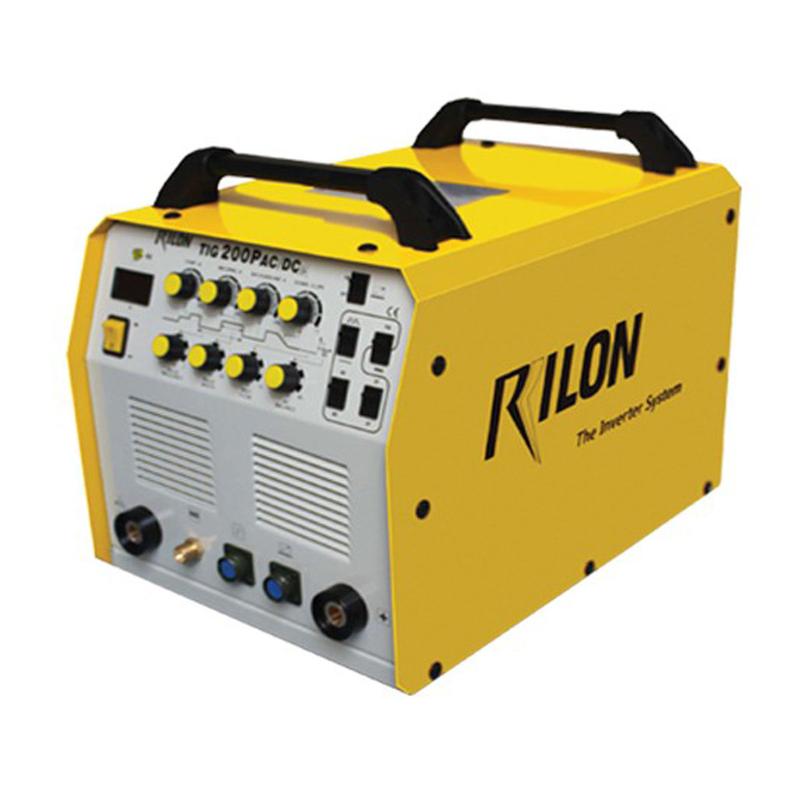

RILON AC/DC 200P 1 PHASE AC/DC INVERTER BASED WELDING MACHINE
RILON
WELDING MACHINE
100 In Stock
RILON AC/DC 200P 1 PHASE AC/DC INVERTER BASED WELDING MACHINE
Features:
- Multi functional : pulse tig, ac/dc and mma function
- Downslop: 0-15s adjustable
- Post flow0-10s adjustable
- Pulse frequency 0-5HZ adjustable
- Wide range for input voltage:220V+-15%
Specification:
| Parameters | Specification |
|---|---|
| Input Voltage | AC220V+-15%1P |
| Input Frequency | 50/60 |
| Related Input Current | TIG 28.2A, MMA 43.6A |
| Input Power | TIG 6.2KVA, MMA 9.6KVA |
| Open circuit Voltage | 44V |
| Current Range | 10-200A |
| Duty Cycle | 60% |
| Arc-Initiating (TIG) | H-F |
| Efficiency | 80% |
| Power Factor | 0.73 |
| Protection Class | IP21 |
| weight | 20KG |
| Dimensions | 498X328X302 mm |
