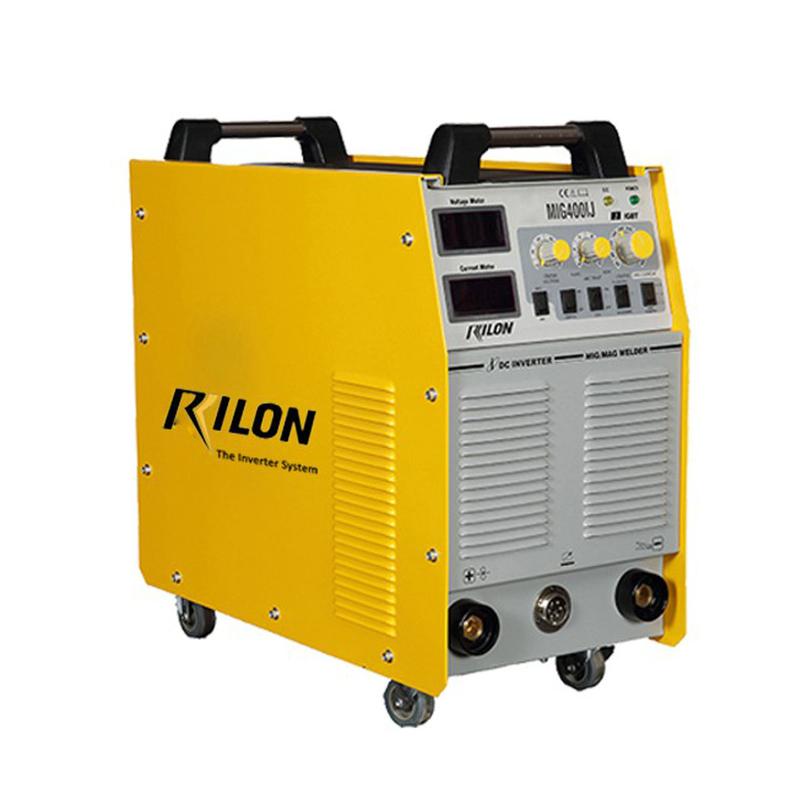

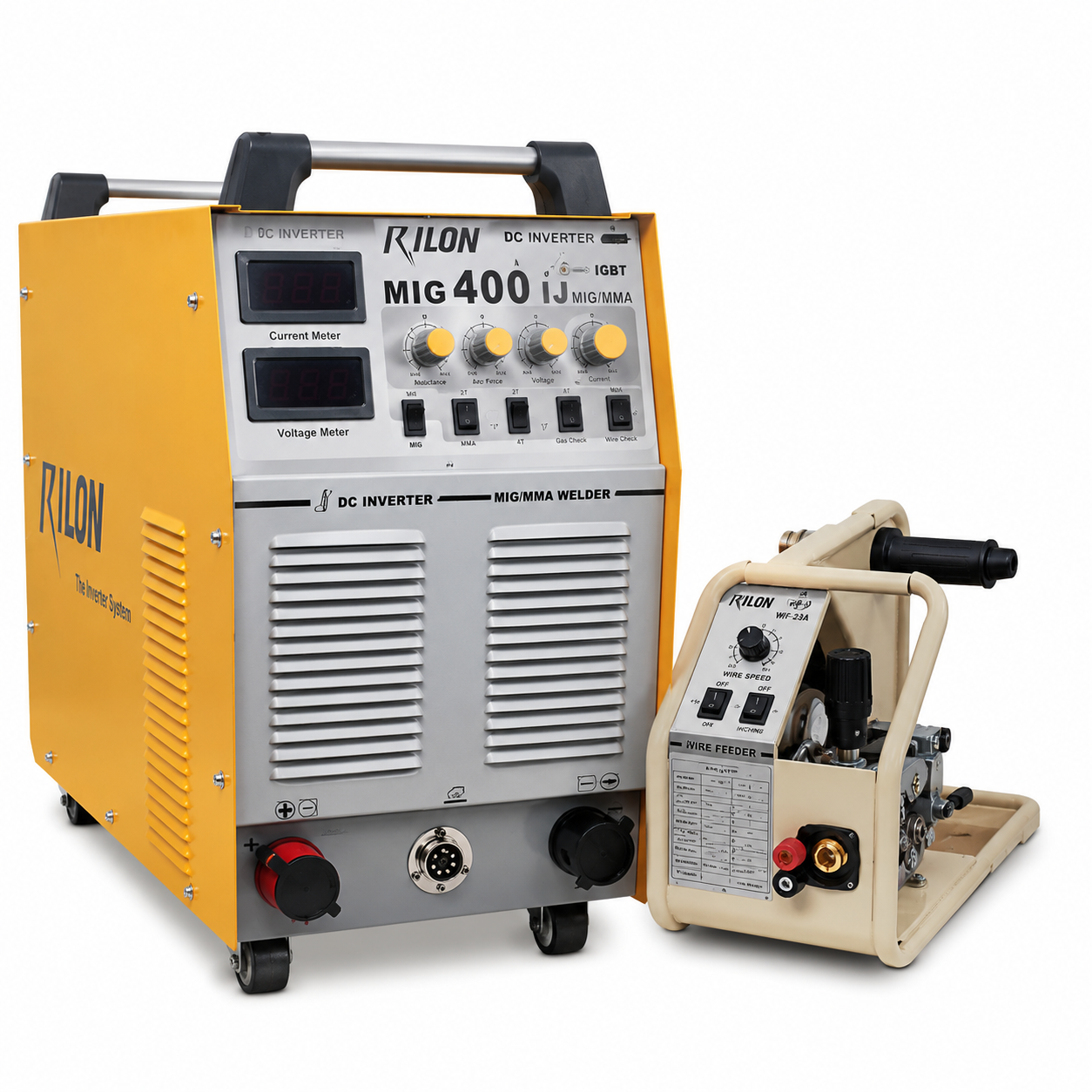

RILON MIG/ARC 400 AMPS I MODULER IGBT



Rs. 62,000.00 Rs. 123,074.00

RILON

WELDING MACHINE

100 In Stock


RILON MIG/ARC 400 AMPS I MODULER IGBT

MIG 400 AMPS I Moduler - IGBT - ARC is one of the machine of MIG series.

Features:

  • Multi functional MIG/MAG, ARC
  • Soft-arc and strong-arc, adjustable.
  • Arc-stability with low spatter.
  • Pre-set digital display
  • Wide range for input voltage:380V +- 15%
  • Advanced IGBT module technology
  • Input voltage optional:3P 220V +- 15%

Specification:

Parameters Specification
Input Voltage AC380V +- 15% 3P
Input Frequency 50/60
Related Input Current MIG 21.3A, ARC 22.8A
Open Circut Voltage 50V
Related Input Power MIG 14KVA ARC 15KVA
Current Range MIG 60-400A
Duty Cycle 60%
Power Factor 0.93
Efficiency 85%
Wire-Feeding Speed 3-15m/min
Wire Feeding Mechanism External
Protection Class IP21
Wire Diameter 0.8-1.2 mm
Weight 36KG
Dimentions 550X280X545 mm
