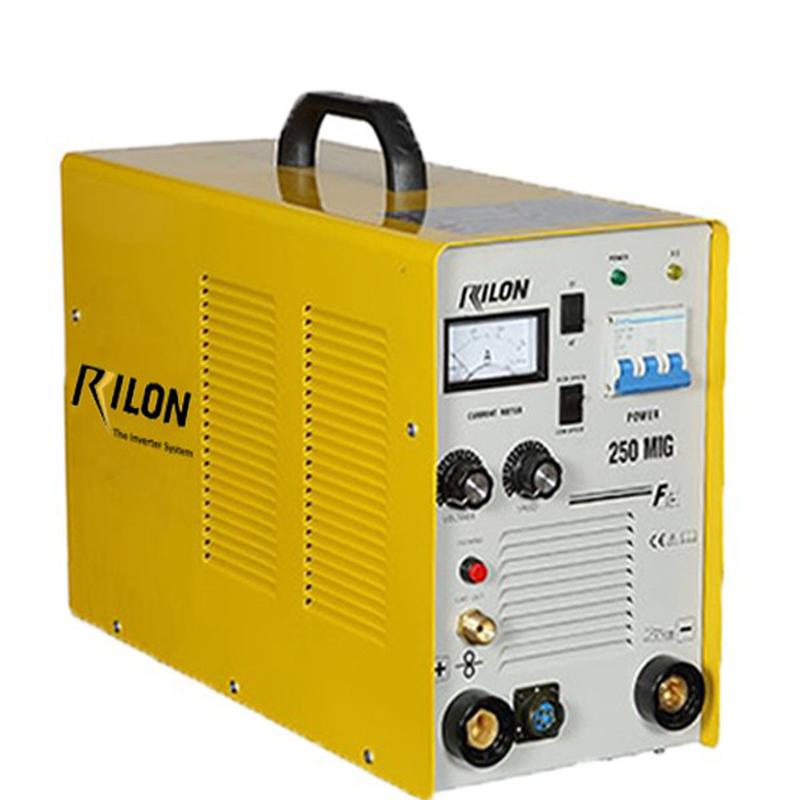

RILON MIG 250 THREE PHASE
RILON
WELDING MACHINE
100 In Stock
RILON MIG 250 THREE PHASE
MIG 250 Three Phase is one of the machine of MIG series.
Features:
- 2T/4T
- Arc stability with low spatter
- Wide range for input voltage:220V / 380V +- 15%
- Mature MOSFET technology
- Portable
Specification:
| Parameters | Specification |
|---|---|
| Input Voltage | AC380V +- 15% 3P |
| Input Frequency | 50/60 |
| Related Input Current | 12.8A |
| Open Circut Voltage | 56V |
| Related Input Power | MIG 8.4KVA |
| Current Range | MIG 50-250A |
| Duty Cycle | 60% |
| Power Factor | 0.93 |
| Efficiency | 85% |
| Wire-Feeding Speed | 2.5-13m/min |
| Wire Feeding Mechanism | External |
| Protection Class | IP21 |
| Wire Diameter | 0.8-1.0mm |
| Weight | 15KG |
| Dimentions | 505X203X375 mm |
